Bigtwin Bike Show 2013

By Bigtwin Magazine, The Netherlands

Last week Dutch Custom Bike Magazine Bigtwin held their international Custom Bike Show in the Autotron, Rosmalen in The Netherlands.

This year the Bigtwin Bikeshow saw just one class, in which all the Bikes participated. It’s so hard to put all the Bikes in seperate classes, sometimes a bobber is more like a chopper, a chopper could be an oldtimer as well as a chopper, new, so called ‘Fusion’ Bikes, with old frames and new engines are not easy to classify, and so on, so the organization of this year's Bigtwin Bikeshow decided to let the jury pick the five Best Bikes out of the 65 bikes that were in the show. Also a Best of Show -public's choice-, and Rookie of the Year were chosen.

AND THE FIVE WINNERS ARE

(in random order):

Buell M2 Cyclone Chopper - Blackmarket Customs

Grub, NCC Sussex, UK

ALGEMEEN/ IN GENERAL

Eigenaar/Owner: Grub, NCC Sussex, UK

Bouwer/Builder: Blackmarket Customs

 TECHNISCHE GEGEVENS BIKE/ TECHNICAL INFO BIKE

Merk/Brand: Buell

Model/Type: M2 Cyclone

Bouwjaar/Year: 2001

Motorblok/Engine: Buell with chain conversion

Cilinderinhoud/displacement: 1200cc

Carburateur/Carburator: 1-1/4 inch Mini SU, with one-off manifold

Uitlaat/Exhaust: One-off 2-1

Versnellingsbak/Gearbox: Stock

Frame/Frame: One-off twin top tube designed by Blackmarket Customs

Achterbrug/Swingarm: N/A

Voorvork/Front fork: One-off Girders

Voorspatbord/Front fender: N/A

Voorwiel/Front wheel:  Fat Boy

Achterwiel/Rear wheel: Fat Boy

Achterspatbord/Rear fender: N/A

Benzinetank/Gas tank: Highly modified Sportster

Olietank/Oil tank: Polished alloy front mounted

Verdere specificaties/Further specifications:

One-off bars with internal throttle,

DNA rear sprocktor,

6 Pot Billet front brake caliper,

Internal switch mounted in frame tube,

Hidden ignition,

One-off rear light,

2CV Headlight with Halogen conversion,

Cut down cam cover,

Adapted Sportster front sprocket cover,

Minimal one-off loom with Dyna ignition and Lithium battery,

Polished aftermarket levers and master cylinder,

High mounted billet forward controls,

CNC ‘NCC’ Frame inserts which includes fuel inlet/cap

One-off seat base covered by Viking Seats

National Chopper Club 40th Anniversarypaint by Stig at Sickboyz Customs UK

Suzuki Intruder 1400

Danny van Gerven

ALGEMEEN/ IN GENERAL

Eigenaar/Owner: Danny van Gerven

Bouwer/Builder: Danny van Gerven

TECHNISCHE GEGEVENS BIKE/ TECHNICAL INFO BIKE

Merk/Brand: Suzuki

Model/Type: intruder VS1400

Bouwjaar/Year: 1987

Motorblok/Engine: 2 cylinder

Cilinderinhoud/displacement: 1360cc

Carburateur/Carburator: Mikuni

Uitlaat/Exhaust: Home-made by Owner

Versnellingsbak/Gearbox: Suzuki

Frame/Frame: suzuki/ Home-made by Owner

Achterbrug/Swingarm: Home-made by Owner hardtail

Voorvork/Front fork: USD Ducati Monster

Voorspatbord/Front fender: Home-made by Owner

Voorwiel/Front wheel: Suzuki M1800

Achterwiel/Rear wheel: Suzuki M1800

Achterspatbord/Rear fender: Zodiac/ Home-made by Owner

Benzinetank/Gas tank: zodiac/ Home-made by Owner

Olietank/Oil tank: ---

Verdere specificaties/Further specifications:

V-rod style Headlight

Thunderbike risers

Lucas speedfighter bars

Thunderbike speedo

HD V-rod brake & clutch master cylinder

HD Road King switchhousings

Shaft drive midified for 240 tyre

License plate holder Home-made by Owner

Led light in rear fender rail

Seat: Black Alcantare and black leather with red stitching

Paint: Porsche Anthracite-Brown and Pearl White

Bike is entirely built in garden shed 10 x 10 ft.

Harley-Davidson Sportster Digger

Chris Nichols & Dave Batchelar - P&D Custom Bikes

ALGEMEEN/ IN GENERAL

Eigenaar/Owner: P&D Custom Bikes

Bouwer/Builder: Chris Nichols & Dave Batchelar

 TECHNISCHE GEGEVENS BIKE/ TECHNICAL INFO BIKE

Merk/Brand: Harley-Davidson

Model/Type: Sportster

Bouwjaar/Year: 1996

Motorblok/Engine: Sportster with Twin Cam rocker boxes

Cilinderinhoud/displacement: 1200 conversion

Carburateur/Carburator: CV

Uitlaat/Exhaust: Choppershack

Versnellingsbak/Gearbox: H-D

Frame/Frame: P&D

Achterbrug/Swingarm: P&D

Voorvork/Front fork: Stock Sportster

Voorspatbord/Front fender: P&D modified

Voorwiel/Front wheel: DNA

Achterwiel/Rear wheel: DNA

Achterspatbord/Rear fender: P&D

Benzinetank/Gas tank: P&D

Olietank/Oil tank: P&D

Verdere specificaties/Further specifications:

One off bars by P&D

One off seat by P&D

Foot pegs & grips: CCI P&D modified

S&S belt drive

Lucas taillight

CCI headlamp

Avon tyres

Engine engraving: Don Blocksidge

Paint: Keith Baker @ classic cycleworks

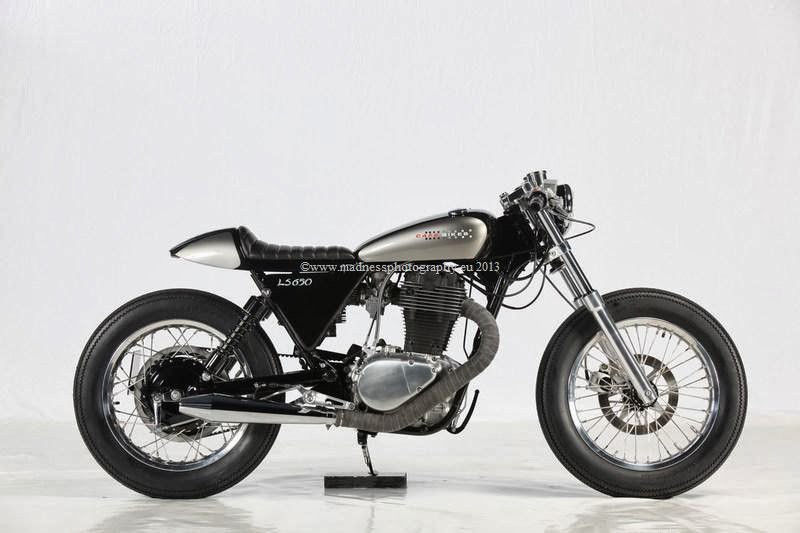

Suzuki LS650 Savage

Henry de Vries - Cafe Bikes

ALGEMEEN/ IN GENERAL

Eigenaar/Owner: Henry de Vries

Bouwer/Builder: Henry de Vries

TECHNISCHE GEGEVENS BIKE/ TECHNICAL INFO BIKE

Merk/Brand: Suzuki

Model/Type: Savage

Bouwjaar/Year: 1994

Motorblok/Engine: Suzuki

Cilinderinhoud/displacement: 650cc

Carburateur/Carburator: Mikuni BS 40SS

Uitlaat/Exhaust: Megaton

Versnellingsbak/Gearbox: 5-Speed

Frame/Frame: Suzuki, Modified

Achterbrug/Swingarm: Suzuki, Modified

Voorvork/Front fork: Suzuki, Modified

Voorspatbord/Front fender: None

Voorwiel/Front wheel: Hub: Suzuki, Rim: Monrad, Tyre: 4.00 x 18 Firestone DeLuxe Champion

Achterwiel/Rear wheel: Hub:Suzuki, Brake: Hub brake, Rim: Monrad, Tyre: 4.00 x 18 Firestone DeLuxe Champion

Achterspatbord/Rear fender: None

Benzinetank/Gas tank: Suzuki Savage, Modified

Olietank/Oil tank: None

Yamaha XS650

Marc de Vriese - Wheely Shop

ALGEMEEN/ IN GENERAL

Eigenaar/Owner: De Vriese Marc

Bouwer/Builder: De Vriese Marc

TECHNISCHE GEGEVENS BIKE/ TECHNICAL INFO BIKE

Merk/Brand: Yamaha

Model/Type: XS650

Bouwjaar/Year:1977

Motorblok/Engine: Stock

Cilinderinhoud/displacement: 650cc

Carburateur/Carburator: Stock Vacuum

Uitlaat/Exhaust: Homemade stainless steel-laser X-treme mufflers

Versnellingsbak/Gearbox: 5-speed, stock

Frame/Frame: Hardtail weld on -TC Bros USA

Achterbrug/Swingarm: Hardtail

Voorvork/Front fork: Upside down Sachs Roadster

Voorspatbord/Front fender: West Eagle USA

Voorwiel/Front wheel: 19inch stock Avon tire

Achterwiel/Rear wheel: 16inch Shinko tire

Achterspatbord/Rear fender: West Eagle USA

Benzinetank/Gas tank: Thompson moped 1950

Olietank/Oil tank: Dummy tank for electric components-home made

Verdere specificaties/Further specifications:frame hardtail weld on-clipons bike design-front brake motomaster flame disc-caliper beringer-master cilinder motomaster-rear brake caliper beringer-disc flame motomaster-seat sullys usa-grips flakes zodiac-speedo highway-hawk-air cleaners xs performence-engine paint black wrinkle-thanks to eddy de moor for flake paintjob-filip van damme helping hand by aassembly and bike design for delivery most special parts.

Best of Show - Chosen by the Public

Karel van Hattum - H-D Shovelhead 'Model T' Ford Pick-up

Best of Show, Chosen by the Public

ALGEMEEN/ IN GENERAL

Eigenaar/Owner:  Karel van Hattum

Bouwer/Builder: Karel van Hattum

TECHNISCHE GEGEVENS BIKE/ TECHNICAL INFO BIKE

Merk/Brand: Harley-Davidson Home-made by Owner Trike

Model/Type: “Model T” Pick-up

Bouwjaar/Year: 2013

Motorblok/Engine: Shovelhead Harley-Davidson

Cilinderinhoud/displacement: 1200 cc

Carburateur/Carburator: S&S Shorty

Uitlaat/Exhaust: Home-made by Owner

Versnellingsbak/Gearbox: 4-Speed, Kick Only

Frame/Frame: Home-made by Owner Softail

Achterbrug/Swingarm: Home-made by Owner

Voorvork/Front fork: swingarm monoshock , Home-made by Owner

Voorspatbord/Front fender: Home-made by Owner

Voorwiel/Front wheel: chrome 21” spoke wheel 120 wide

Achterwiel/Rear wheel: 2 steel 15 inch rims, 205 wide

Achterspatbord/Rear fender: Home-made by Owner

Benzinetank/Gas tank: Harley-Davidson Sporter, modified

Olietank/Oil tank: FLH Early Shovel

Verdere specificaties/Further specifications:

Dual activated footbrake, activates front and rearbrakes

Brakes Front: dual disc / Brembo 4-piston calliper

Remmen achter: 2 x Discbrakes with 4-piston calliper

Schokdemper voor en achter gasdempers met instelbare veer (voor enkele en achter dubbele gasdemper)

Primair aandrijving 3 inch open belt

Footboards with footclutch and handshifter

Internal throttle, wiring and brakeline through the handlebars and frame.

Pick-up bed made by owner, aluminium and wood.

Rookie of the Year

Puch - Boardtracker - Haico Heersink

ROOKIE OF THE YEAR

ALGEMEEN/ IN GENERAL

Eigenaar/Owner: Haico Heersink

Bouwer/Builder: Haico Heersink

TECHNISCHE GEGEVENS BIKE/ TECHNICAL INFO BIKE

Merk/Brand: Puch

Model/Type: X30

Bouwjaar/Year: 1976

Motorblok/Engine: Puch E50 Kickstart

Cilinderinhoud/displacement: 72cc

Carburateur/Carburator: 24mm Dellorto Down Draft

Uitlaat/Exhaust: Home-made by Owner

Versnellingsbak/Gearbox: None

Frame/Frame: Custom X30 frame

Achterbrug/Swingarm: Custom hardtail

Voorvork/Front fork: 1927 Webb Front End

Voorspatbord/Front fender: None

Voorwiel/Front wheel: 19 Inch Solex wheel

Achterwiel/Rear wheel: 19 Inch Puch wheel

Achterspatbord/Rear fender: None

Benzinetank/Gas tank: Home-made by Owner

Olietank/Oil tank: None

Verdere specificaties/Further specifications:

Everything done on this Boartracker is Home-made by Owner.

Paint by Auto-Flexx in  Varsseveld.

Photo's of all the Bigtwin Bikeshow 2013 Participants

soon on our website www.madnessphotography.nl
